Prerequisite

Readiness

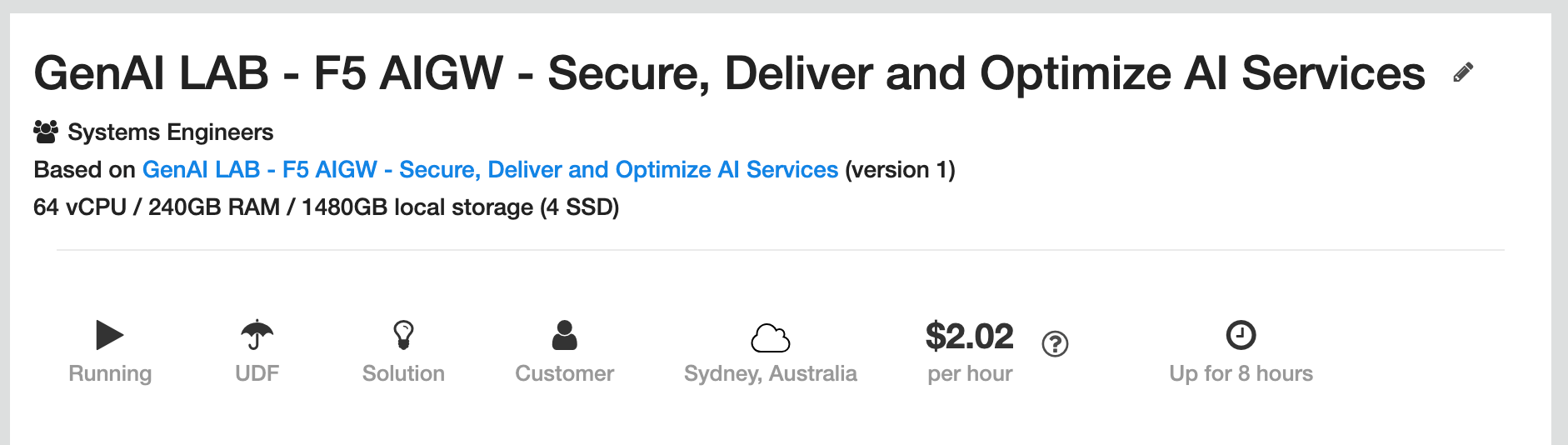

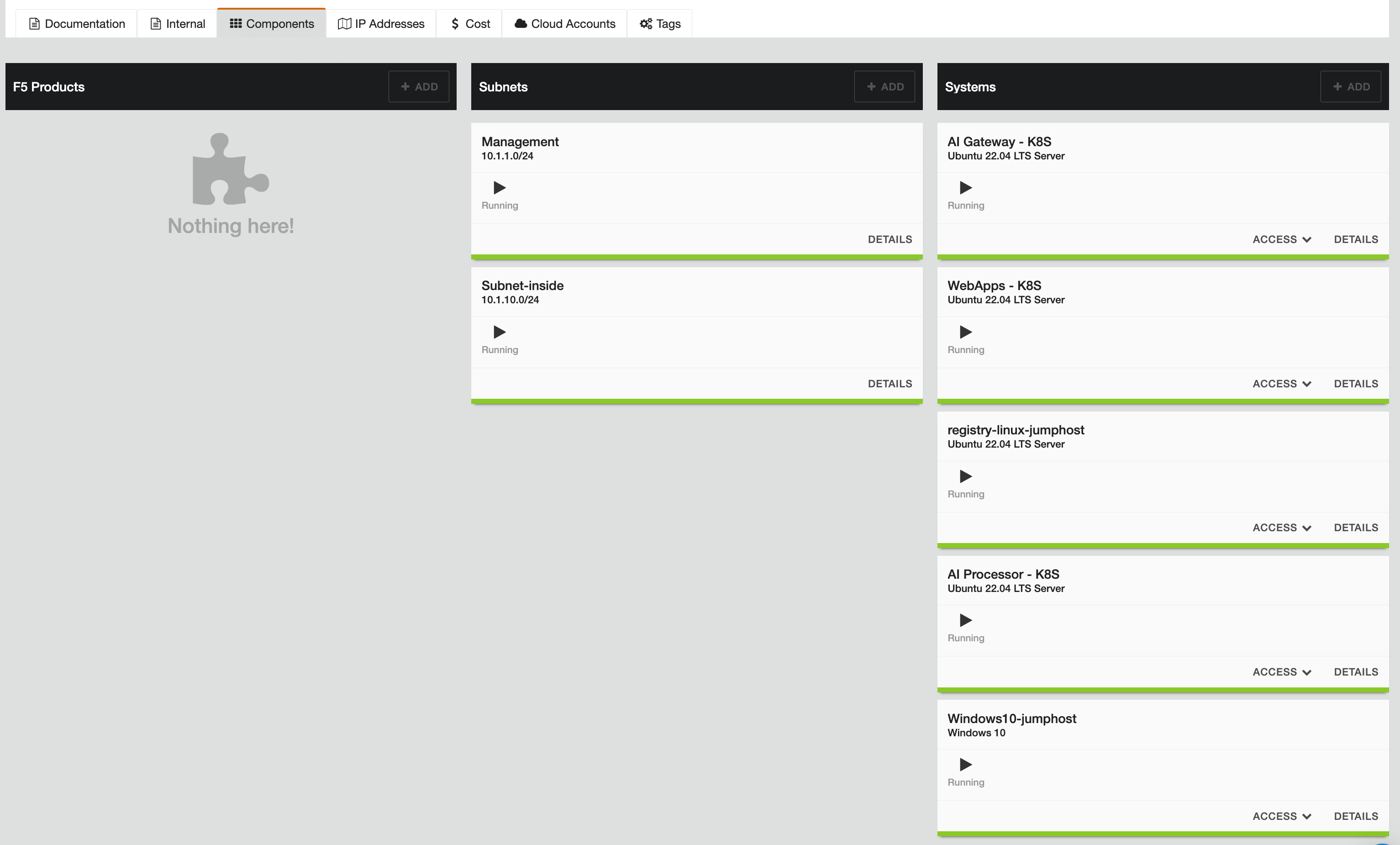

Ensure LAB ennvironment is ready and Running to execute subsequent task.

Blueprint

Attention

Classes depend on private registry server (Harbor Registry). Ensure its up and running before proceed.

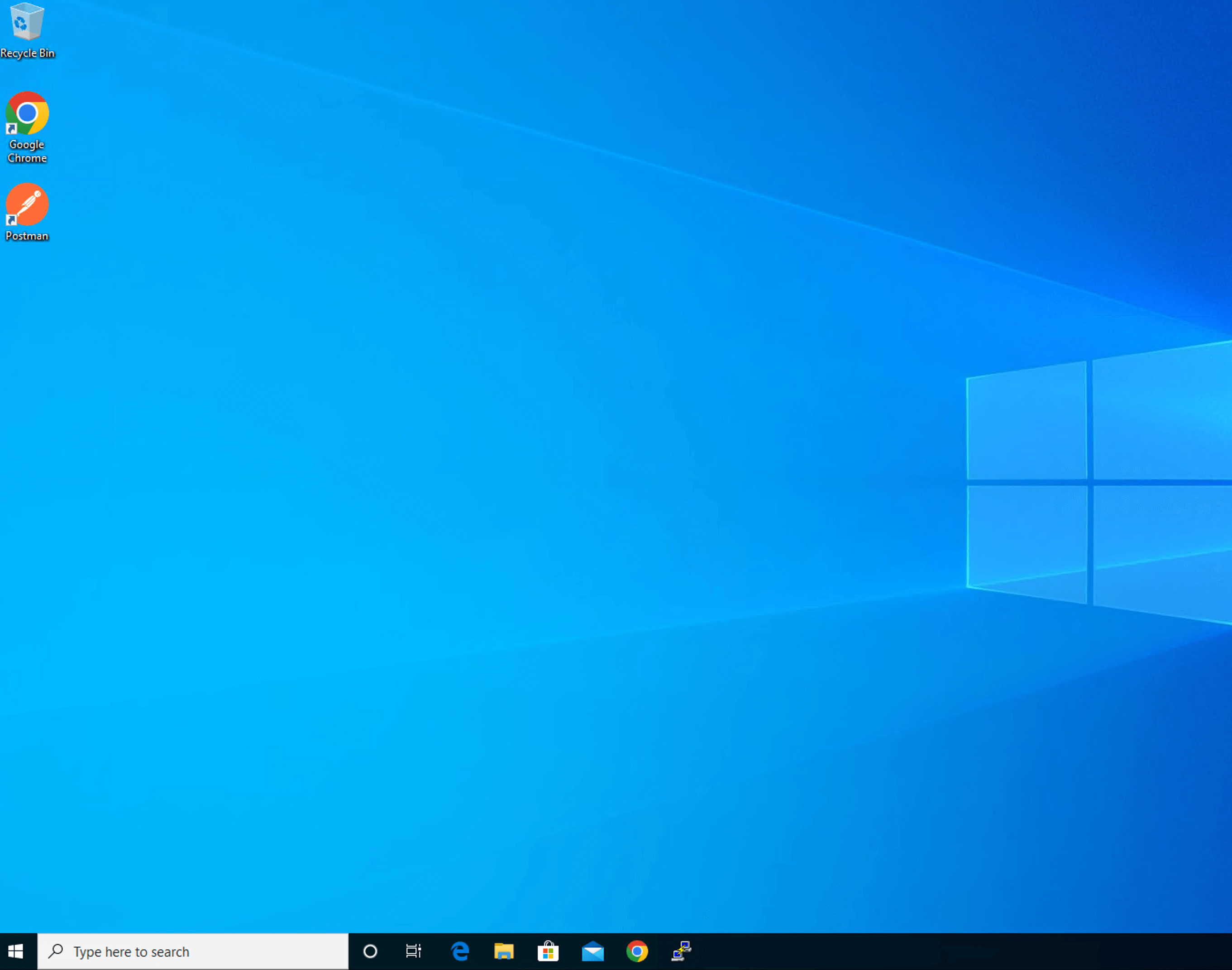

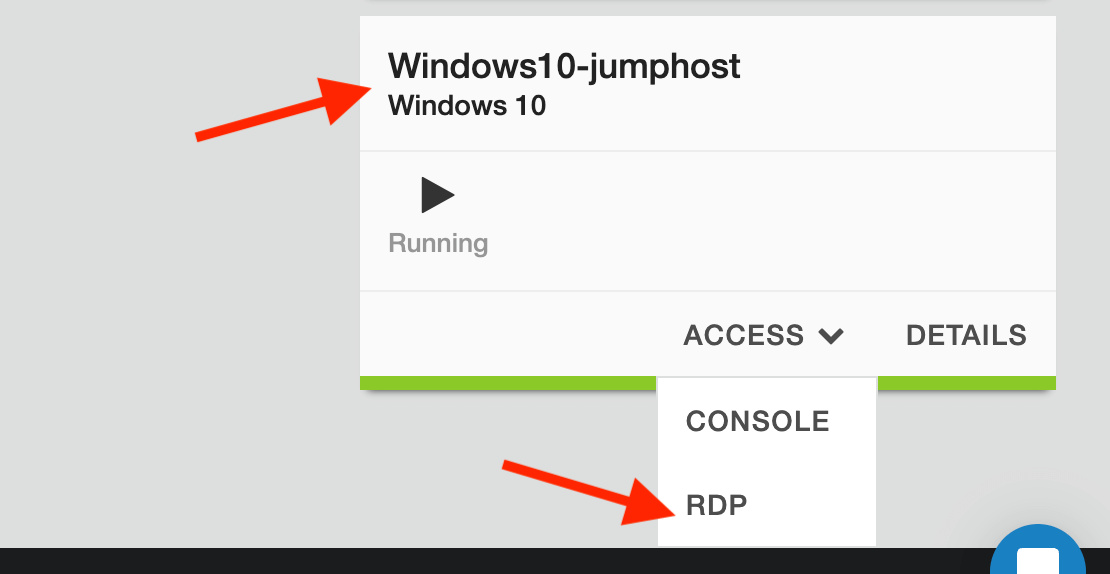

Remote RDP to Windows10 Jumphost.

Login to a remote desktop (RDP) to access Harbor registry server to ensure services are running and you able to login.

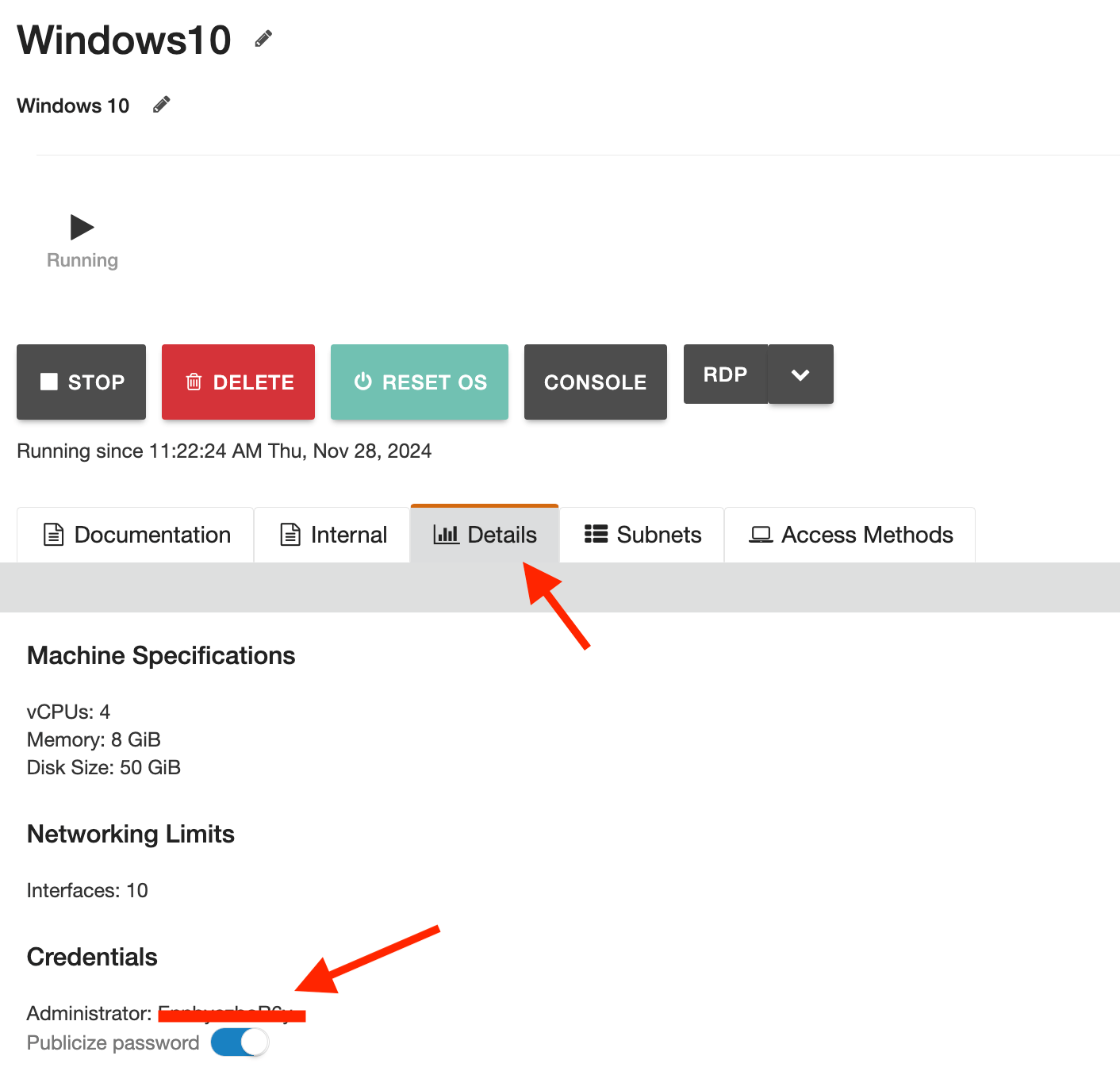

Windows10 RDP login password can be obtainsed as following

Window 10 Jumphost

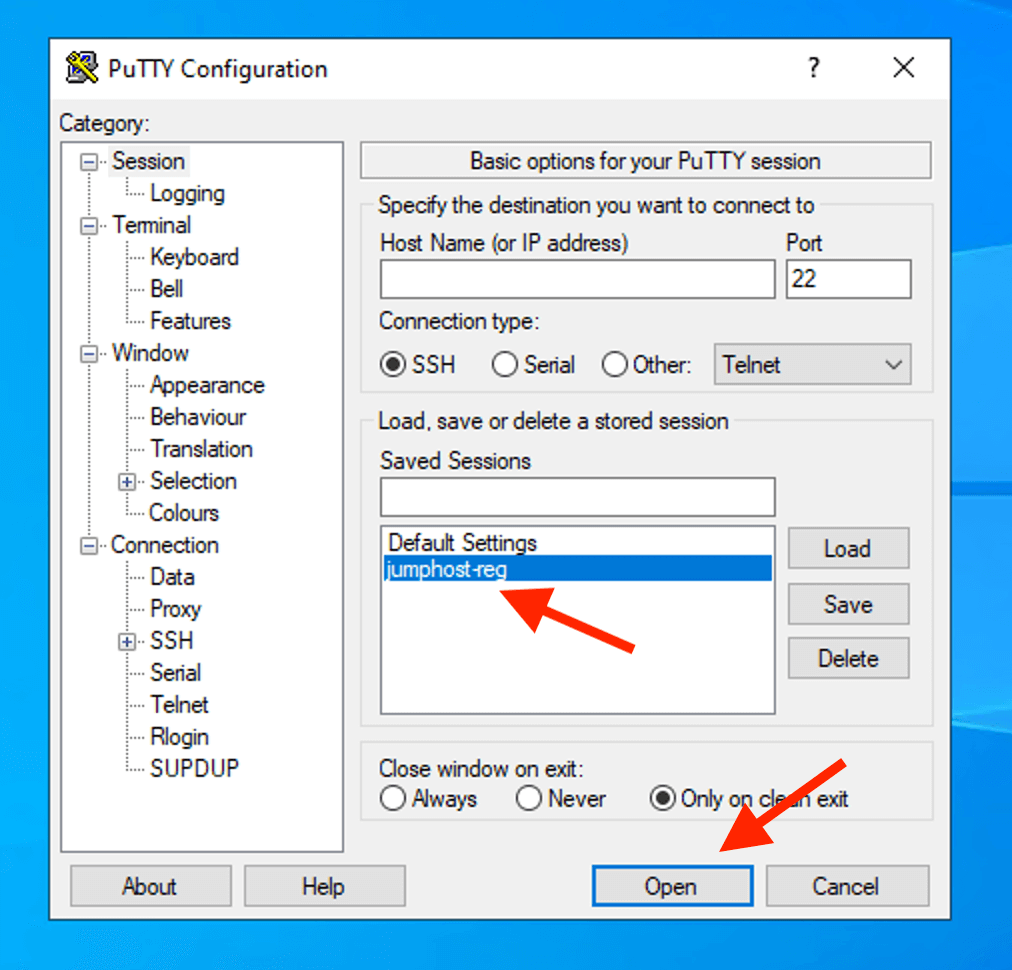

Launch a putty session and login with the following credential.

Username	ubuntu
Password	HelloUDF

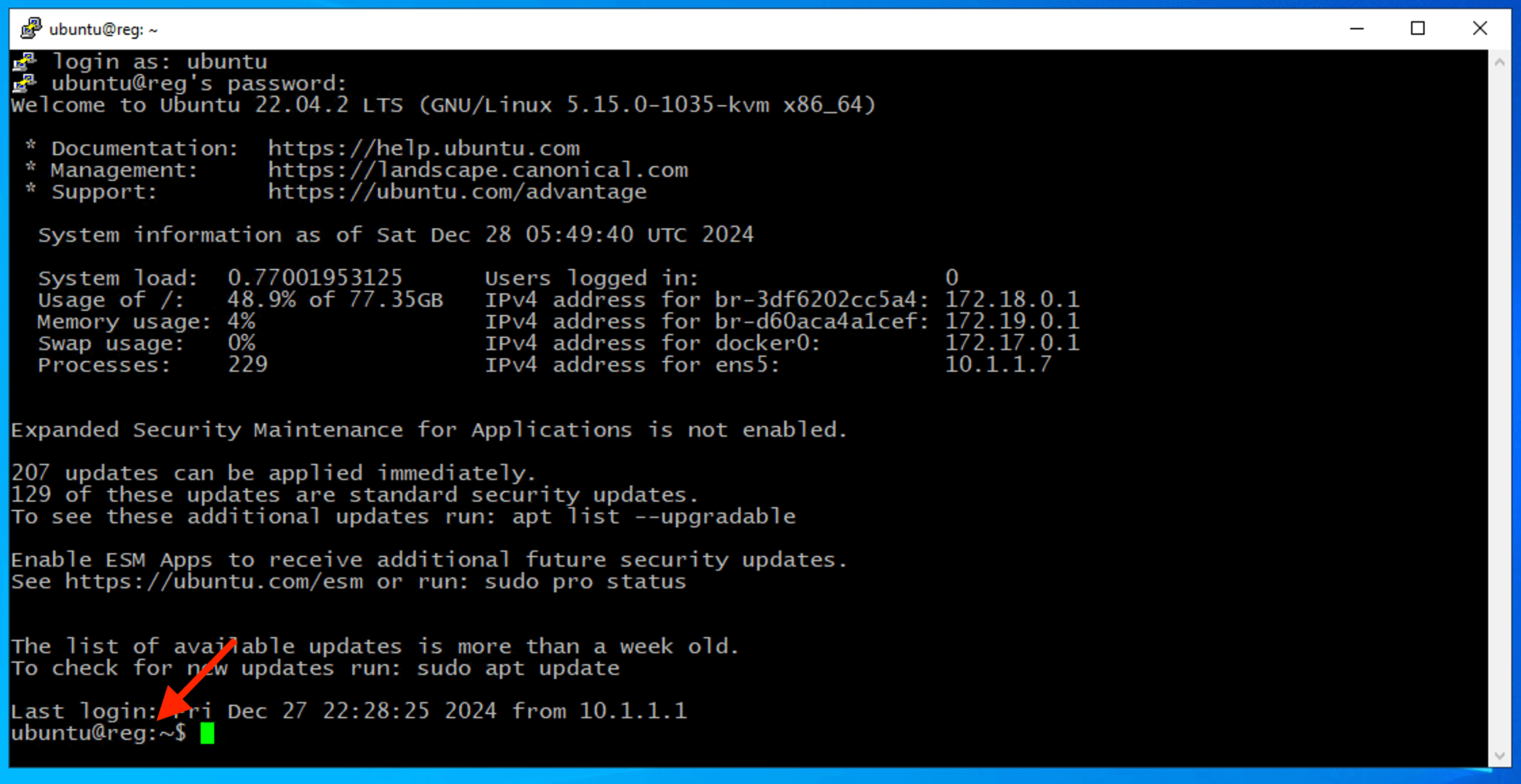

You should be able to get the following prompt on “reg” server.

Run the folowing command to ensure registry service active and running.

sudo systemctl status harbor

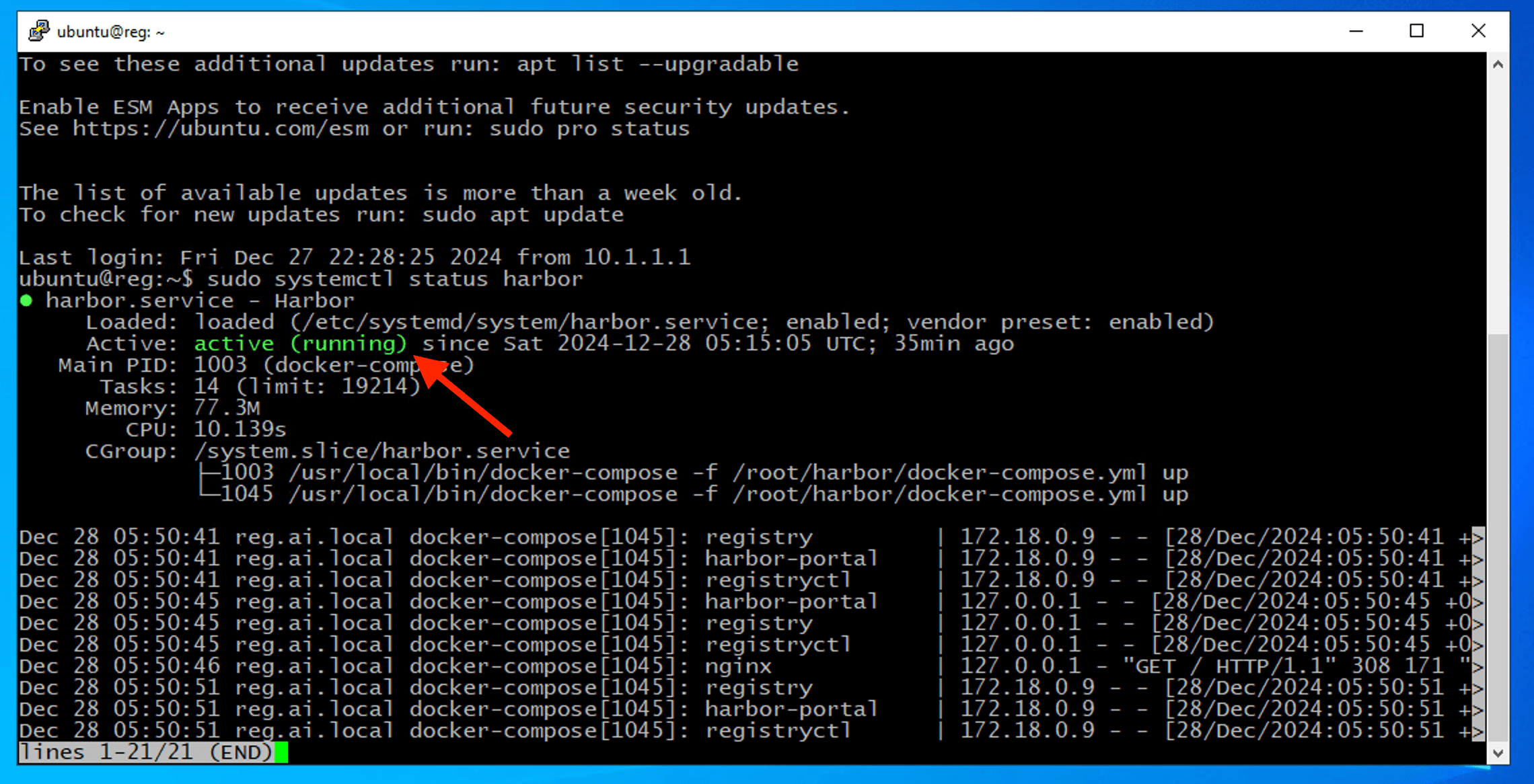

Harbor registry should shown active (running)

Note

Only run the following if harbor not or partially running.

sudo systemctl stop harbor

sudo systemctl start harbor

sudo systemctl status harbor

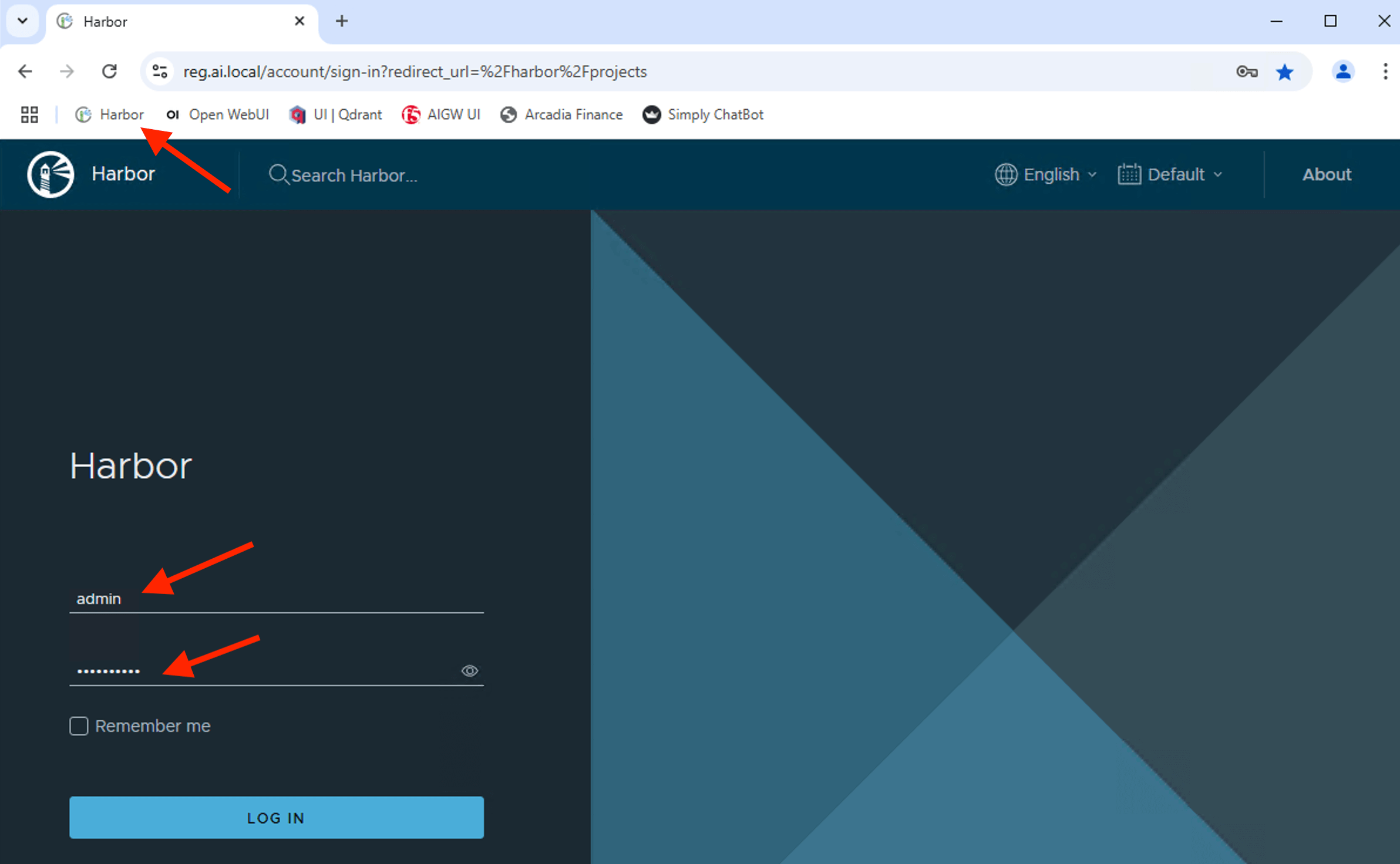

Access to Harbor Registry server with Chrome browser

Username	admin
Password	F5Passw0rd

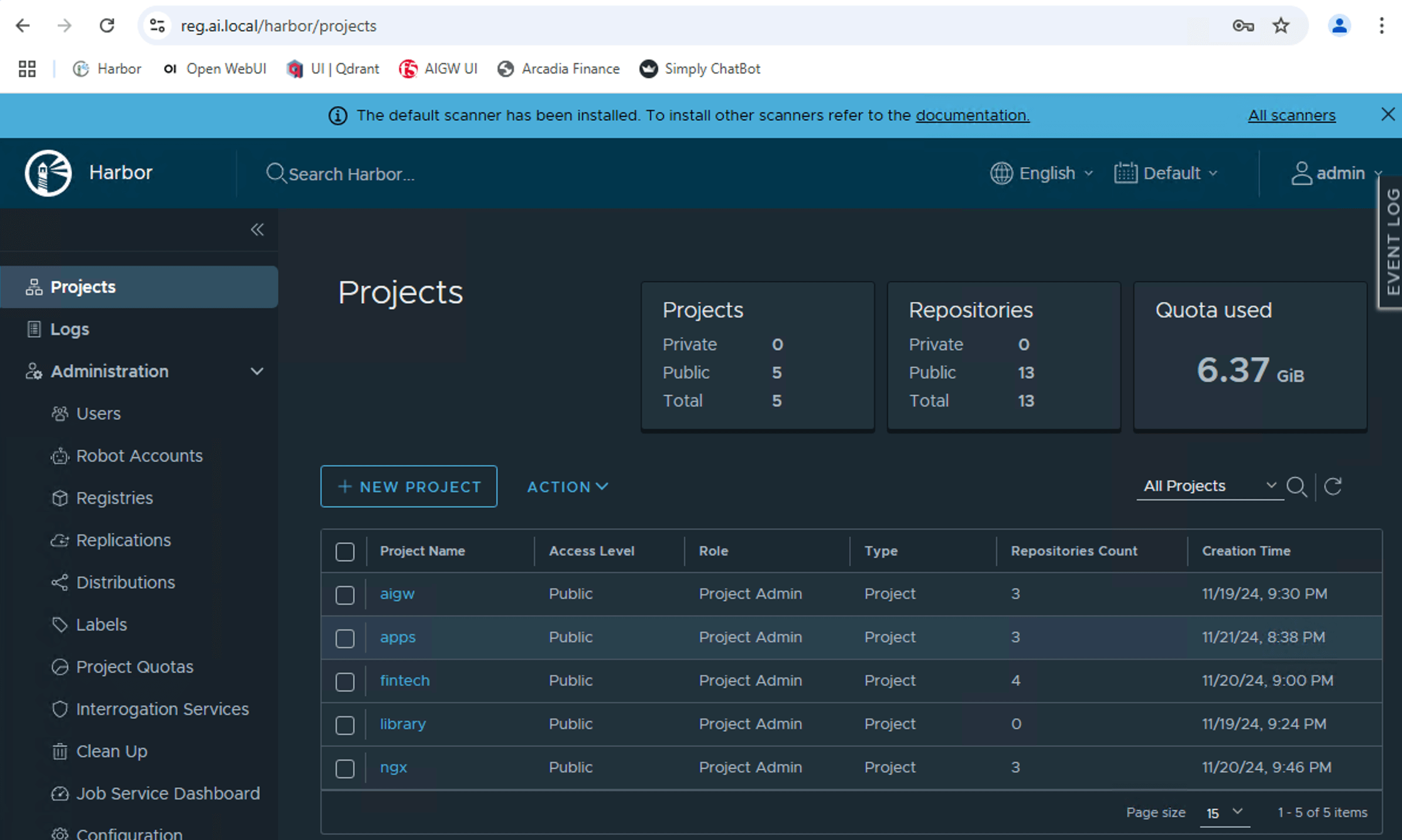

Sucessfully login to registry server.

Lab Setup Environment

Service	FQDN / URL	IP Address
Open-WebUI Service	open-webui.ai.local	10.1.1.4
AI Gateway Core	aigw.ai.local	10.1.1.4
AI GW Configuration Service	aigw-config.ai.local	10.1.1.4
AIGW UI Service	aigw-ui.ai.local	10.1.1.4
Ollama Service	ollama.ai.local	10.1.1.4
Registry Service / Jumphost	reg.ai.local	10.1.1.7
Arcadia Financial Modern Apps	arcadia.ai.local	10.1.1.9
Simply Chatbot	simply-chat.ai.local	10.1.1.9
Langchain / LLM Orchestrator	llm-orch.ai.local	10.1.1.9
Vector Database	vectordb.ai.local	10.1.1.9
